It is imperative to exercise utmost diligence when identifying the Shengyi S1000-2M PCB material, in order to steer clear of any potential confusion. Furthermore, by leveraging these distinctive attributes, you will gain a deeper understanding of the appropriate material or laminate type.
In this article, we’ll discuss what really characterizes the Shengyi S1000-2M material. The relevant information is available for pcb design engineers to refer to in the selection of materials. And QFPCB offers the best services when it comes to the Shengyi S1000-2M PCB materials, so you can also call QFPCB to discuss.
What is the Shengyi S1000-2M laminate?
The Shengyi S1000-2M PCB material is an advanced solution designed for high-temperature applications, making it a reliable choice for various industries. This material stands out due to its exceptional heat resistance properties, ensuring that it remains stable and functional even under extreme conditions. Its ability to withstand high temperatures without degradation provides peace of mind, as users can be confident that their PCBs will not suffer from thermal damage during operation.
One of the key characteristics of the PCB material is its high glass transition temperature (Tg), which can reach up to approximately 170 degrees Celsius. This feature is crucial because it allows the material to maintain its mechanical properties and structural integrity at elevated temperatures. Additionally, the material offers excellent UV resistance, which helps protect the PCB from potential damage caused by ultraviolet rays. This protection is achieved through specialized additives that effectively block UV radiation, preventing long-term degradation and ensuring prolonged performance.
Another significant advantage of the Shengyi S1000-2M PCB material is its compatibility with lead-free laminate materials. This compatibility not only enhances safety during use but also aligns with modern environmental standards. By using this material, manufacturers can reduce the risk of releasing hazardous substances into the environment, contributing to more sustainable production processes. This aspect makes the PCB material an eco-friendly option, appealing to industries that prioritize environmental responsibility.

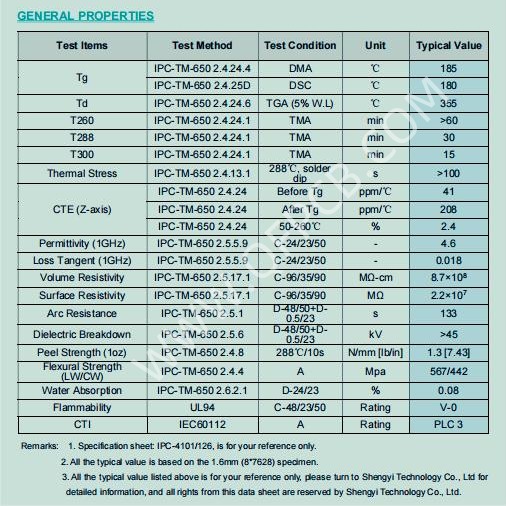

Shengyi S1000-2M PCB material data sheet
Features of the Shengyi S1000-2M PCB material
Presented below are the key features of the Shengyi S1000-2M PCB material.
High UV Resistance and Tg value
Another great feature of the Shengyi S1000-2M PCB material is its high temperature for glass transition and UV resistance. This Tg value can reach highs of about 170 degrees centigrade. Asides from this, there are special features, which aid in blocking UV ray effects on the PCB.
High Heat Resistance
The PCB material is useful in any high-temperature application. Using this material, you will have no worry of any destruction. One reason for this is that the PCB material possesses high heat resistance features, which helps in maintaining their stability.
Lead Free Compatibility
The PCB material works fine with lead-free laminate materials. This makes them much safer when using them.This also means that you will make use of the PCB material without having to worry about environmental pollution or hazardous substances.
Low Water Absorption
Another great feature of the Shengyi S1000-2M PCB material is its low water absorption rate. With this feature, water will not penetrate it. What we mean is that the PCB material is useful in moisture-laden applications with less worry.
Excellent anti-CAF Performance
The Shengyi S1000-2M PCB material also has excellent anti-CAF performance. This prevents any processes involved in electrochemical corrosion therefore increasing the general durability.
Great Through-Hole Reliability
You will have lots of confidence that you can easily drill some through holes in the Shengyi S1000-2M PCB material during component mounting.Furthermore, this feature makes it possible for you to drill different hole sizes and types into the PCB material. This is what makes them very compatible.
Lower Z-axis CTE
In addition to other features, the PCB material has a lower coefficient of thermal expansion at the Z-axis. The CTE for the Z-axis at 50 to 260 degrees centigrade stands at 2.4%. After Tg, the CTE stands at 208 ppm per degrees centigrade, while before Tg, it stands at 41 ppm per degrees centigrade. This shows how much the Z axis of the PCB will contract or expand when cooled or heated.
What are the applications of the Shengyi S1000-2M?
Aligned with the distinctive attributes of Shengyi S1000-2M PCB material, this substrate proves invaluable in executing diverse functions across various applications. Presented below are some key applications of the Shengyi S1000-2M.
Computer Equipment
The Shengyi S1000-2M PCB material is very important in modern equipment for communication like cell phones and computers. This is why it is possible to have cell phones that are waterproof, which will function effectively under wet or water conditions.
Routers
Also, you can apply the Shengyi S1000-2M PCB material in router equipment like those for internet connection.Special features are available like dust and water resistance. This makes them great materials for use in environments that are harsh.
Automotive Industry
The Shengyi S1000-2M PCB material is also useful in automobiles, which you move through different places. This PCB material helps in improving the automobile features performance. It also protects them from any possible harm.
High Aspect Ratio
The Shengyi S1000-2M PCB materials are useful in high aspect ratio applications. This holds most especially in multi-layer printed circuit boards.
Quality certifications of the Shengyi S1000-2M PCB material
Also, there is a need for you to know the importance of making use of high-quality Shengyi S1000-2M PCB material.For example, the PCB material is very durable and will surely offer a better performance in contrast to the low quality ones.
When you look at its quality certification, determining the PCB material’s quality will be easy. Below are some of the major quality certifications to consider.
>IPC
>UL
>RoHS
>TS-16949
>MIL-PRF-31032
>31032 GI 8-layer
>IATF16949:2016
>ISO AS9100D and 9001:2015
We trust that our elucidation of the Shengyi S1000-2M PCB material has been comprehensive. Furthermore, we have delved into its diverse properties, applications, and quality certifications. At this point, you should be well-versed in this subject.
If you have any further questions, please feel free to leave a comment below or contact QFPCB by email ([email protected]).
