What is the High-frequency NF-30 laminate?
NF-30 copper clad, non-reinforced laminates are high-performance ceramic-filled PTFE composites specifically designed for use in advanced microwave and high-frequency electronic applications. These laminates combine the unique properties of PTFE with ceramic fillers to achieve a material that excels in low dielectric loss, minimal signal distortion, and high thermal stability.
In microwave applications, the low dielectric loss of NF-30 laminates allows for efficient signal transmission with reduced attenuation, making them ideal for high-speed digital circuits, RF (radio frequency) communication systems, and high-frequency microwave devices. The ceramic filler incorporated into the PTFE matrix further enhances the material’s dimensional stability and thermal performance, enabling it to maintain its electrical properties over a wide range of temperature. NF-30 offers very stable performance over a wide frequency range, especially at 77-79 GHz range.

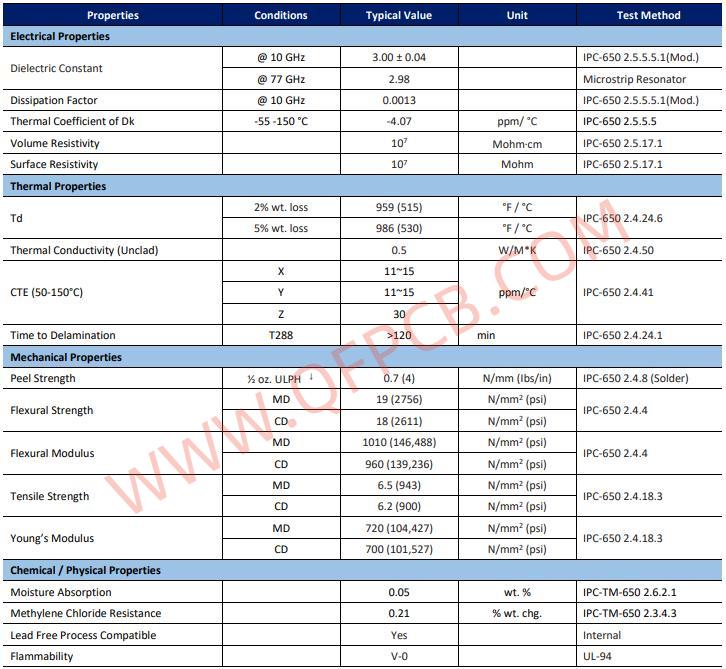

Features of the High-frequency NF-30 laminate for PCBs
Excellent Electrical Properties
- Low Df electrical performance at higher frequency where skin effect losses play a substantial role
Thermal and Mechanical Properties - Excellent dimensional stability from etching or baking
- Low Z-axis expansion in extreme thermal environments or multilayer applications
Processing Properties - Can be sheared, drilled, milled and plated
- Desmear treatment “by chemicals like permanganate” is not recommended but “by plasma” can be recommended.
- CO2 laser ablation of NF-30 can make it possible to be used in precise microwave designs with dense PTH connection.
Benefits of the High-frequency NF-30 laminate for PCBs
NF-30 copper-clad, non-reinforced laminates are composed of ceramic-filled PTFE composites. This advanced material technology is specifically designed to offer exceptional performance in microwave applications. The ceramic fillers enhance the dielectric properties of the PTFE matrix, resulting in several key benefits:
Non-reinforced laminate
NF-30 laminate is a high-performance, non-reinforced material designed for advanced microwave and high-frequency applications. It belongs to the category of non-reinforced laminates, which means it does not contain any reinforcing fibers or fabrics. Instead, it is composed of a ceramic-filled PTFE composite, offering unique and superior electrical and mechanical properties.
Exceptional low electrical loss for microwave applications
The ceramic-filled PTFE composite exhibits a very low dielectric loss tangent (Df), which significantly reduces signal attenuation and ensures high signal integrity. This is crucial for maintaining the performance of high-frequency circuits and minimizing energy loss. NF-30 laminate is composed of a ceramic-filled PTFE composite, providing a unique combination of low dielectric loss, minimal signal distortion, and high thermal stability. These properties make it an ideal choice for advanced microwave and high-frequency circuits.
Excellent adhesion to Very Low Profile Copper Foils
The NF-30 laminate is clad with high-purity, very low profile copper foils on one or both sides. VLP copper foils have a smoother surface and reduced thickness compared to standard copper foils, which is beneficial for high-frequency applications. One of its standout features is its excellent adhesion to very low profile (VLP) copper foils. This property is crucial for ensuring reliable and high-quality performance in various electronic applications, particularly those requiring precise and fine-pitch circuitry.
Stable dielectric properties vs. temperature & frequency
NF-30 laminate offers stable dielectric properties across a wide range of temperatures and frequencies, making it an excellent choice for high-performance applications. Its low dielectric loss, minimal signal distortion, and thermal stability ensure reliable and consistent performance in demanding environments. Whether for high-frequency circuits, high-speed digital systems, or critical aerospace and Global Positioning System Antennas applications, NF-30 laminate delivers the performance and reliability needed to meet the most stringent requirements.
Dimensionally stable for multilayer applications
NF-30 laminate offers exceptional dimensional stability, making it an ideal choice for multilayer applications. Its low coefficient of thermal expansion, low moisture absorption, and chemical resistance ensure that the laminate maintains its dimensions and integrity throughout the fabrication and operation processes. Combined with its low dielectric loss, minimal signal distortion, and thermal stability, NF-30 laminate provides the performance and reliability needed for the most demanding multilayer electronic applications.
Well suited for laser based Microvia formation
The NF-30 laminate is specifically utilized and is highly well suited for the precise process of laser-based microvia formation. This particular laminate has been engineered and developed to meet the demanding requirements of this advanced manufacturing technique. Its unique properties and composition make it an ideal choice for achieving efficient and accurate microvia formation through the utilization of laser technology.
Applications of the High-frequency NF-30 laminate for PCBs
NF-30 is increasingly favored in industries like aerospace, automotive radar, and telecommunications, where advanced manufacturing techniques are needed to meet the stringent performance and reliability standards of next-generation electronic systems.
Global Positioning System Antennas
NF-30 laminate which is known for its superior performance and high-quality composition, is commonly used for the highly sensitive and precise Global Positioning System Antennas. This particular laminate provides excellent signal transmission and reception capabilities, ensuring the accurate and reliable functioning of the antennas in various environments and applications.
Automotive Radar Sensors
The NF-30 laminate is specifically employed and proves to be highly suitable for applications in automotive radar sensors. This laminate has been meticulously designed and fabricated to meet the exacting standards and specific requirements of automotive radar sensor technology. Its exceptional properties, such as superior electrical insulation, low dielectric loss, and high thermal stability, make it an ideal choice for ensuring the optimal performance and reliability of automotive radar sensors in various driving conditions and environments.
Aerospace Components
The NF-30 laminate is precisely utilized and is exceptionally well-suited for the fabrication of aerospace components. This laminate has undergone rigorous research and development to meet the extremely demanding and precise requirements of the aerospace industry. Its outstanding characteristics, including high strength-to-weight ratio, excellent resistance to extreme temperatures and pressures, as well as superior durability and reliability, make it an indispensable material for the manufacturing of various critical aerospace components.
Passive Components (Dividers, Filters & Couplers)
The NF-30 laminate is widely used in the design and manufacture of Passive Components (Dividers, Filters & Couplers), particularly in high-frequency applications such as satellite communications, automotive radar, and 5G wireless systems. Dielectric materials are used in these components to influence the propagation of electromagnetic waves, determine the efficiency of energy transfer, and control the impedance characteristics of the devices.
For example, in the case of couplers and dividers, the dielectric material influences the efficiency and frequency response of power division or signal coupling. By selecting a material with the appropriate dielectric constant, designers can minimize signal loss and ensure uniform power distribution to multiple output channels.
NF-30 copper-clad, non-reinforced laminates are a high-performance solution for microwave applications, offering low dielectric loss, minimal signal distortion, thermal stability, and mechanical robustness. These properties make it an excellent choice for high-frequency circuits, high-speed digital systems, and other demanding electronic applications.
