Due to the improvement in technology daily, the application of high-frequency equipment, for ex: RF and microwave equipment is on the increase. A significant component in all of these applications is the printed circuit board, commonly known as PCB which is the basis of the electronic circuits. When comparing all the materials that can be used in the manufacturing of PCBs, Teflon has some preferred characteristics especially when it comes to high-frequency usage. So this has led to the emergence of numerous Teflon PCB manufacturers in the market.

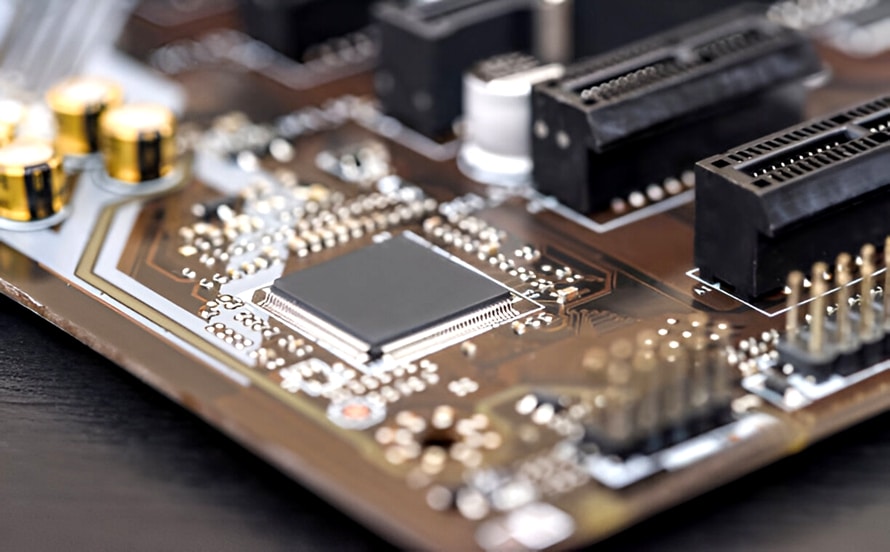

What are Teflon (PTFE) PCBs?
Teflon is a term for a chemical that can be named Polytetrafluoroethylene or PTFE for short. It is widely used for electrical applications because of its electrical insulating properties. It has a small dielectric constant and small loss tangents making it suitable for high frequency and microwave applications. Teflon is also chemically inert and does not undergo chemical reactions. It has a low coefficient of friction and thus can be used in some hard-working conditions.
Teflon PCBs are ‘Printed Circuit Boards’ developed from PTFE-based laminates as opposed to other recognized materials like the FR4. These boards are created for use in particular applications where signals are to be transmitted on high frequencies. We need to have a minimum loss of signals and the electrical characteristics of the boards should be top-notch. The speciality of Teflon makes it ideal to be used in the PCBs in communication devices, radar material, satellite apparatus and other RF and microwave machinery.
Main Characteristics of Teflon Printed Circuit Boards
1. Low Dielectric Constant (Dk)
Dielectric Constant in integrated circuits is expressed as Dk and it quantifies the ability of material to store electrical energy in an electric field. Teflon possesses a low and flexible dielectric constant between 2. 1 and 2. 5.
This value is comparatively much lower than the FR4 having a value of nearly 4. 5. The above result determines that the lower the Dk value, the higher the velocity of propagation for Teflon PCB boards, therefore, it is more suitable for high-frequency applications where signal integrity is important.
2. Low Loss Tangent (DF)
The dissipation factor or the loss tangent (Df) represents the ratio of the dielectric losses of a specific material to its energy throughput. Teflon PCBs are characterized by an exceptionally low loss tangent, normally it is about 0. 001 or lower, thus reducing the signal loss and also making high-frequency signals travel far with little or no distortion. This characteristic is very important, especially in RF and microwave applications.
3. High Thermal Stability
Teflon PCB material is known for its high thermal stability. It has a melting point of about 327°C. This means that Teflon circuit boards can handle the use of heat during operation and production processes like soldering. It also offers extraordinary high-temperature stability thus making the board rigid and highly electrical conducting regardless of the operating conditions.
4. Chemical Inertness
Teflon PCB material has chemical stability and resistance to chemical attack. It has chemical inertness against almost all common acids bases and solvents.
It does not corrode easily. This makes Teflon PCB boards ideal to be used in places where the normal PCB materials are likely to be affected by chemicals, moisture or any other corrosive substance. This characteristic is highly desirable in aerospace military, medical and industrial products where the performance of the circuit is of significance.
5. Excellent Insulation Properties
The electrical insulation of Teflon is very high hence making it a suitable material when it comes to reducing interference between signals on a PCB. This is especially true in the high operating frequency range, where coupling and EMI are potent sources of signal interference. Teflon PCB boards offer good insulation characteristics and therefore minimize interferences and noise.
6. Coefficient of Thermal Expansion
The coefficient of thermal expansion can be given as the extent of changes in the size of a given material as a result of temperature change. Teflon PCB material has a comparatively lower CTE than most other materials for PCB use. This means that PCB Teflon has little or no changes in dimensions when subjected to temperature changes. This stability is very beneficial for holding the circuit’s geometries, especially those in the multi-layer Printed circuit boards used in high-frequency circuits.
Key Considerations for Teflon PCBs Developing and Production
1. Material Handling and Processing
PCB manufacturing involves various phases where it becomes quite difficult to handle Teflon mainly because of the softness and flexibility of the material apart from its sensitivity to pressure and heat. The material used has to go through cutting, drilling and lamination and there is a specific type of equipment and method that has to be applied so that it does not sustain any kind of mechanical harm or alteration.
2. Controlled Impedance Design
High-frequency signals consequently demand controlled impedance in jobs due to the erosion of signal smoothness. Due to the use of Teflon in the manufacturing of PCBs, there is a need to keep an eye on trace width, spacing, and thickness to obtain the right impedance values. Other techniques involved in the planning of Teflon PCB boards involve the use of sophisticated designing tools and simulation software which is used to design and simulate the impedance of the PCB.
3. Surface Finishing
Surface finish decision in Teflon PCBs is critical because it impacts the performance, serviceability and solder ability of the component. Typical surface finishes that are adapted to Teflon circuit boards are electroless Nickel Immersion Gold (ENIG), Immersion silver and Immersion tin. Such finishes give a smooth, very flat surface that guarantees good electric conductivity and resistance to oxidation.
4. Manufacturing Tolerances
Another thing one has to keep in mind while using Teflon PCB material is that since it’s practically non-stick and very slippery, getting close to manufacturing specifications is often difficult. This is due to differences in the thickness of the material used dielectric constant and other related factors which affect the functionality of the PCB. Teflon PCB manufacturers have many roles to play in such variables to ensure that the end product is produced with the right characteristics.
Teflon PCB boards are generally more costly than the normal FR4 PCBs. The reason behind this is the cost of the Teflon and the special processes that are in the manufacturing of the Teflon circuit boards. But when it comes to cost, the performance, reliability, and durability, claimed to possess overshadow it, especially in frequently used devices where signal integrity is of much importance.
Advantages of Teflon PCBs in High-frequency Applications
1. Superior Signal Integrity
Due to the low dielectric constant and declining loss tangent, the signal integrity of the Teflon PCB boards is higher than that of FR4 and similar materials. They reduce signal distortion, signal loss, and interconnecting channel interference, which facilitate the proper transmission of high-frequency signals over long distances. This makes them suitable for uses where accurate and dependable signal transfer is necessary for example: in use for wireless communication, radar and satellite systems.
2. Best Approach for Increased Performance Especially at High Frequencies
Teflon PCBs are designed particularly for high-frequency applications without exception in the frequency area of hundreds of megahertz and way beyond one gigahertz. Because of the low dielectric losses they are capable of operating at high frequencies with negligible power loss thus appropriate for use in RF amplifiers, mixers and filters, and oscillators among others.
3. Good Thermal Management
Teflon which is used in these PCBs has high thermal stability thus enabling the PCBs to work under both high and low temperatures. Capable of withstanding high operating temperatures without the risk of component failure due to heat, they also offer effective heat sinking designs thereby minimizing risks of thermal application of heat on components.
4. Improved Durability and Longevity
PCB Teflon does not get affected by conditions in the environment easily. This makes them last longer and therefore do not require frequent replacement thus low maintenance and replacement costs. This is especially important in aerospace, military, and industrial applications because the reliability and punctuality of the product are of high importance.
5. Reduced Weight
The Teflon PCBs are normally lighter compared to those that are made from other materials and that is a big plus for weight-sensitive applications like flying equipment and portable communication appliances. It’s the same reason why Teflon circuit boards are lighter. Their incorporation aids in enhancing the total efficiency and proficiency of the systems involved.
